Mixer
Ensures uniform blending of active materials and binders into electrode slurry for consistent coating performance.
Key Takeaways
A mixer is a critical component in battery electrode manufacturing, used to combine active materials, conductive additives, binders, and solvents into a homogeneous slurry. This slurry must meet precise viscosity and stability requirements for optimal coating performance.
Mixing technologies are rapidly evolving. Modern systems include inline and continuous mixers, which allow for a constant slurry feed to coating lines—reducing variability and improving throughput. These innovations increase the importance of real-time monitoring of properties such as viscosity, homogeneity, and solid content to ensure consistent product quality.
Common Mixer Types:
- Planetary Mixers
- Double Planetary Mixers
- High-Shear Mixers
- Twin-Shaft or Ribbon Mixers
- Continuous Inline Mixers
- Vacuum-Assisted Systems
- Three roll mills (Mix and fibrillise solvent free)
- Horizontal z-blade mixers
- Centrifugal mixers (commonly used in laboratories / small scale)
What to consider when choosing
What to think about when buying a mixer
- Mixing method and design: Choose between batch and continuous mixing based on your production strategy. Consider whether your process benefits from high shear mixing, vacuum mixing, or multi-stage sequences for complex chemistries.
- Formulation compatibility: Ensure the system can handle the full range of active materials, binders, and solvents used in your recipes—including those with high viscosity, abrasive properties, or sensitivity to moisture.
- Control systems and flexibility: Look for equipment that offers programmable mixing recipes and precise control over speed, time, temperature, vacuum, and accurate material dosing. This allows you to fine-tune the process for different materials, solutions and manufacturing scales.
- Data integration and traceability: Opt for mixers that connect with a Manufacturing Execution System (MES) or digital control platform to capture process data for quality tracking and continuous improvement.
- Cleaning and cross-contamination prevention: Evaluate how easily the system can be cleaned. Campaign-based production (for different chemistries) requires robust cleanout procedures and quick-change features to minimize contamination risks and downtime.
What to look for when buying a mixer
- Mixing performance: The mixer must ensure excellent dispersion of solids and create a stable, homogeneous slurry across all material types. Check for uniformity, lack of agglomerates, and effective wetting of particles.
- Rheological consistency: The system should maintain slurry viscosity and solid content within tight tolerances, especially for formulations sensitive to shear rates or temperature.
- Inline monitoring capabilities: Consider whether the system supports real-time analysis tools for parameters like viscosity, conductivity, temperature, and pH—critical for process control and quality assurance.
- Material and solvent handling: Verify the mixer’s capabilities for powder dosing accuracy and solvent compatibility. Ask about limitations in handling low-flashpoint or corrosive solvents.
- Footprint, environment and integration: Assess whether the mixer’s physical size and power requirements fit your facility, and whether it interfaces seamlessly with downstream equipment such as coating and drying lines, and Manufacturing Execution Systems (MES)
- Maintenance and usability: Look for accessible design features for blade changes, cleaning, and inspection. Downtime due to maintenance can be costly in high-volume operations.
Solutions & suppliers
Verified solutions and the vendors behind them.

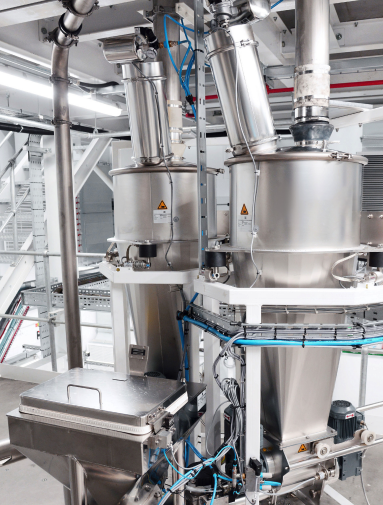

Turnkey Battery Plant & Integrated Mixing Solution
Eirich
Eirich single-source turnkey solution for electrode production. From raw material storage through automated dosing and intensive mixing to slurry delivery.
Intensive Lab Mixer EL5
Eirich
The Eirich EL5 is a lab-scale intensive mixer for battery electrode R&D. One-pot wet slurry and dry PTFE processing with direct scale-up to Gigafactory production systems.
Industrial Intensive Mixer Type RV12
Eirich
The Eirich RV12 is an industrial intensive mixer for battery electrode preparation. Features 15-20 min batch cycles, one-pot wet and dry processing, and 60-80% space savings vs. planetary mixers.
